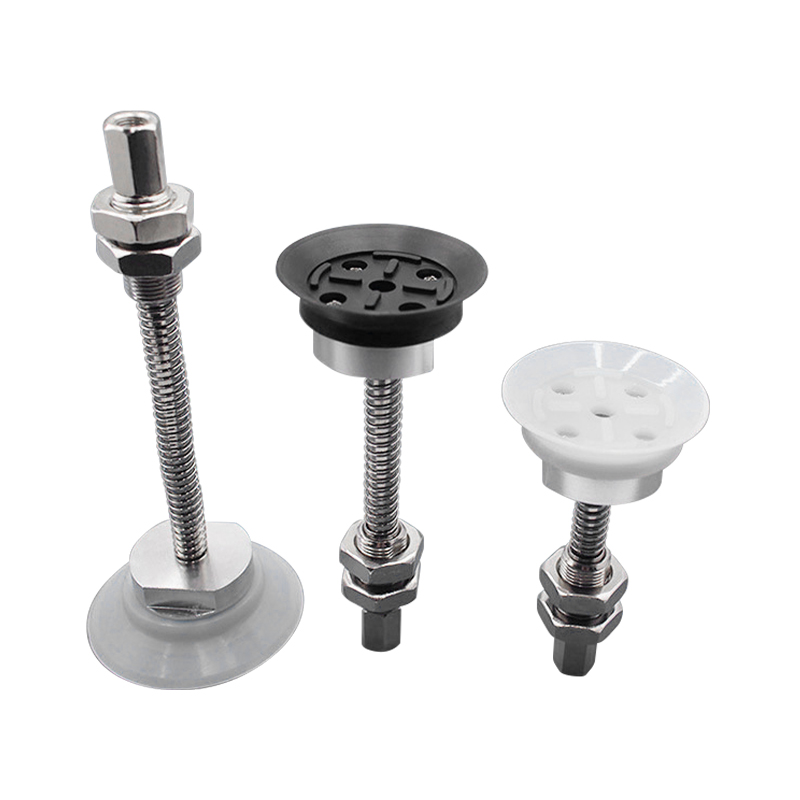

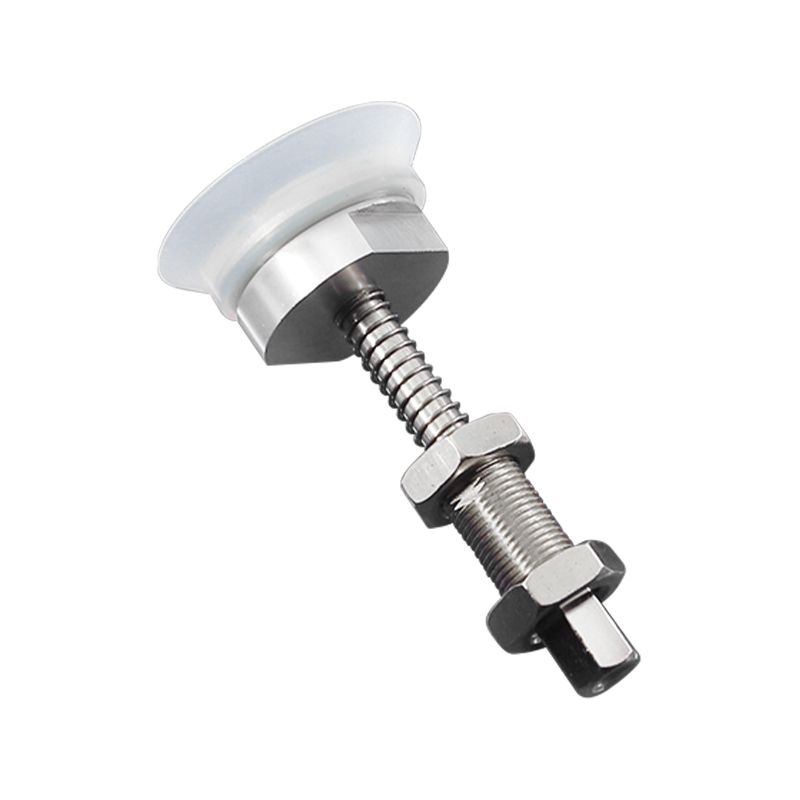

Robot Accessories Heavy-Duty Vacuum Suction Cup Zpth40506380100 Nozzle Hardware Pneumatic Factory Direct Sales
YHZP32HS
YHZP40HS
YHZP40HN
YHZP50HS
YHZP50HN
YHZP63HS
YHZP63HN
YHZP80HS
YHZP80HN
YHZP100HS
YHZP100HN
Product information

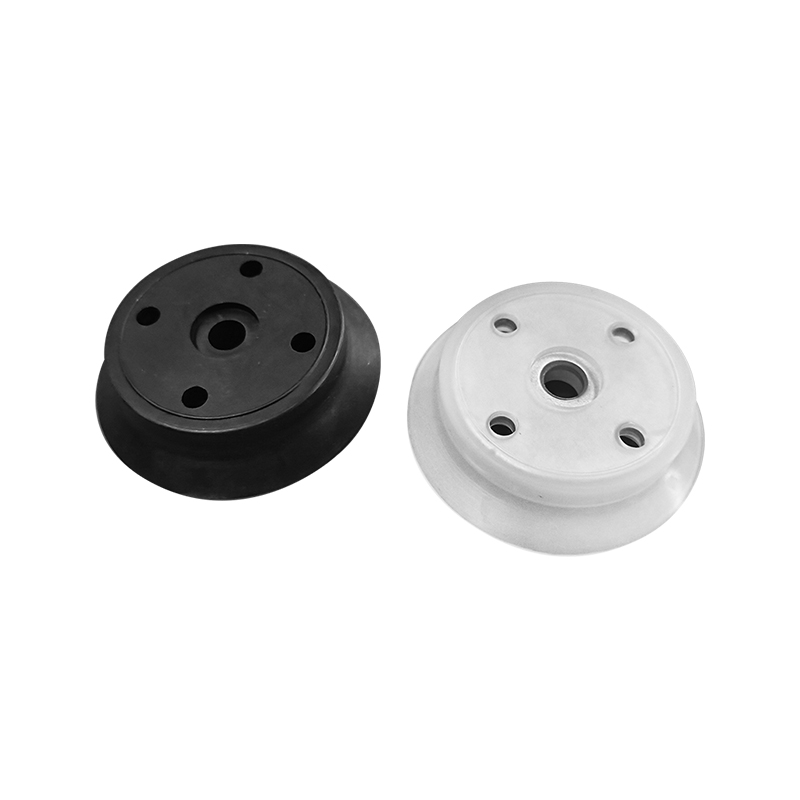

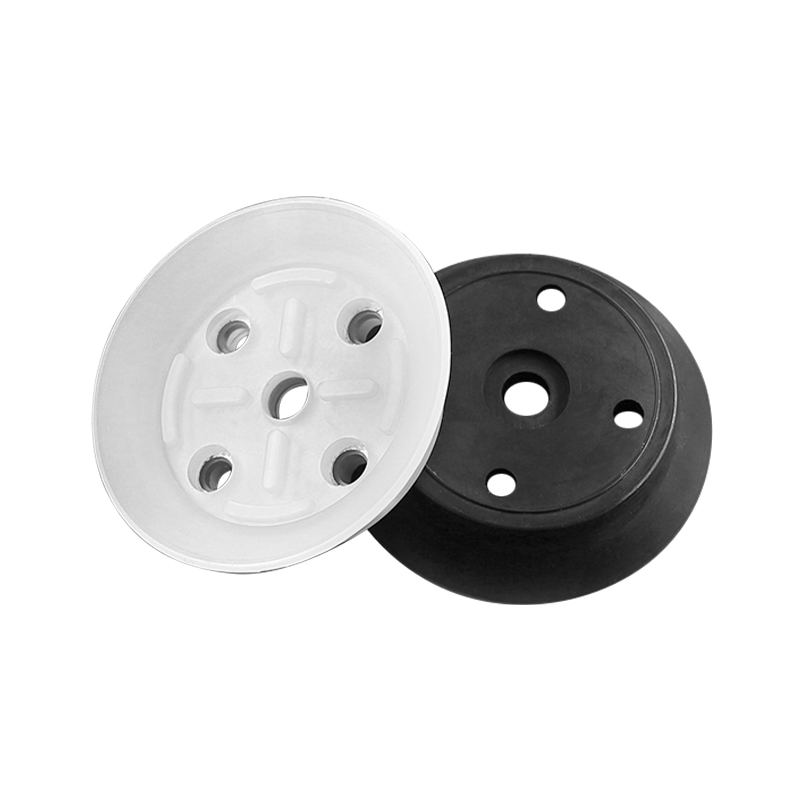

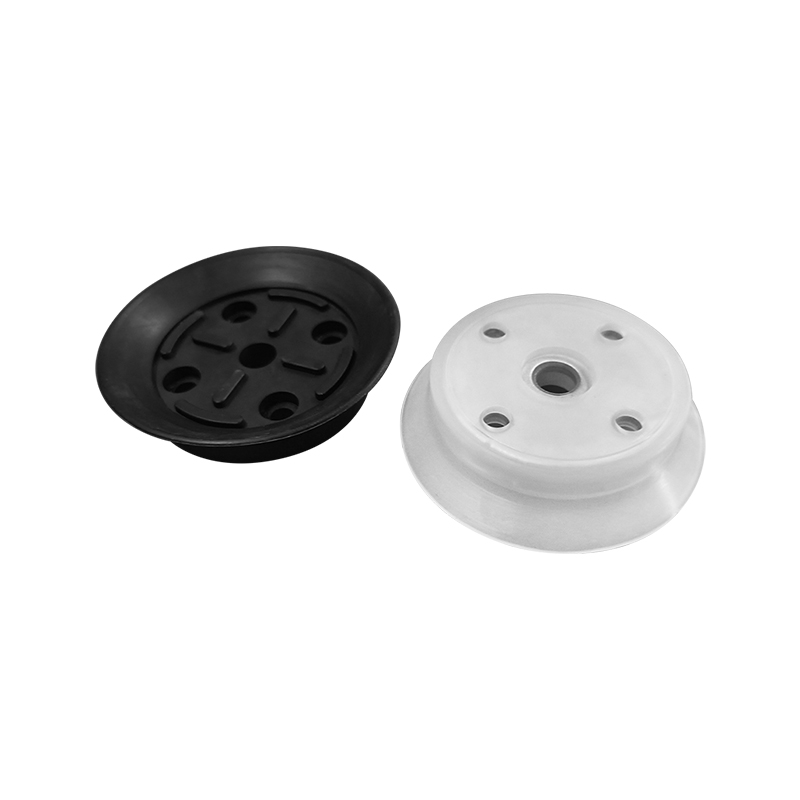

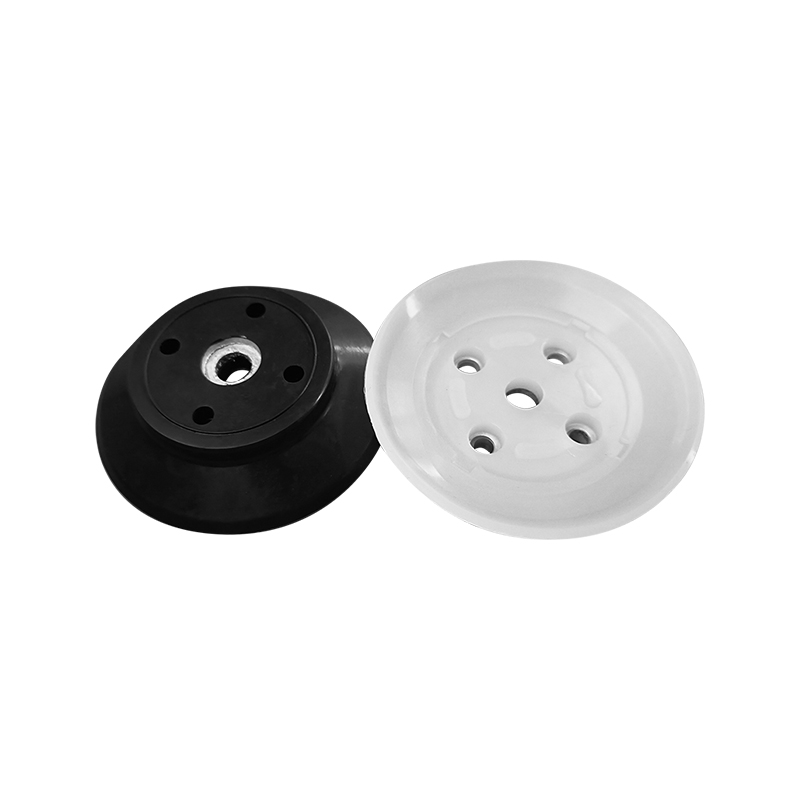

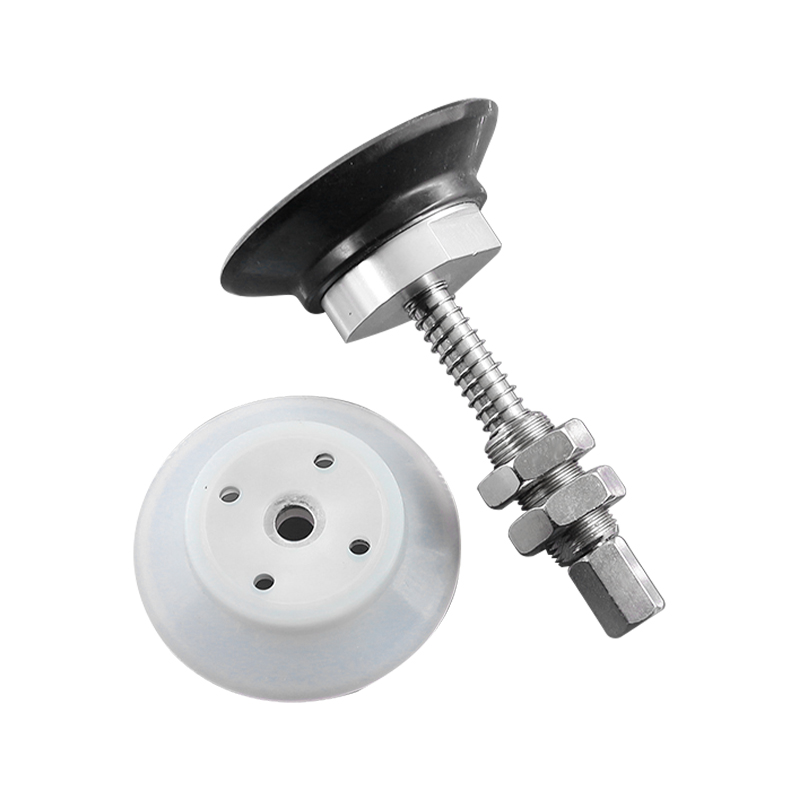

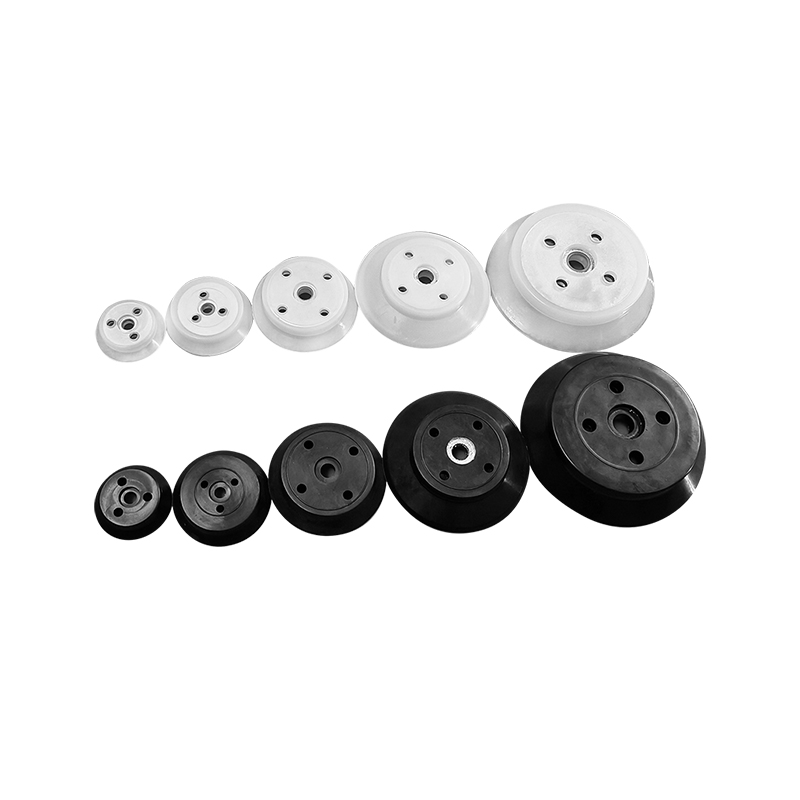

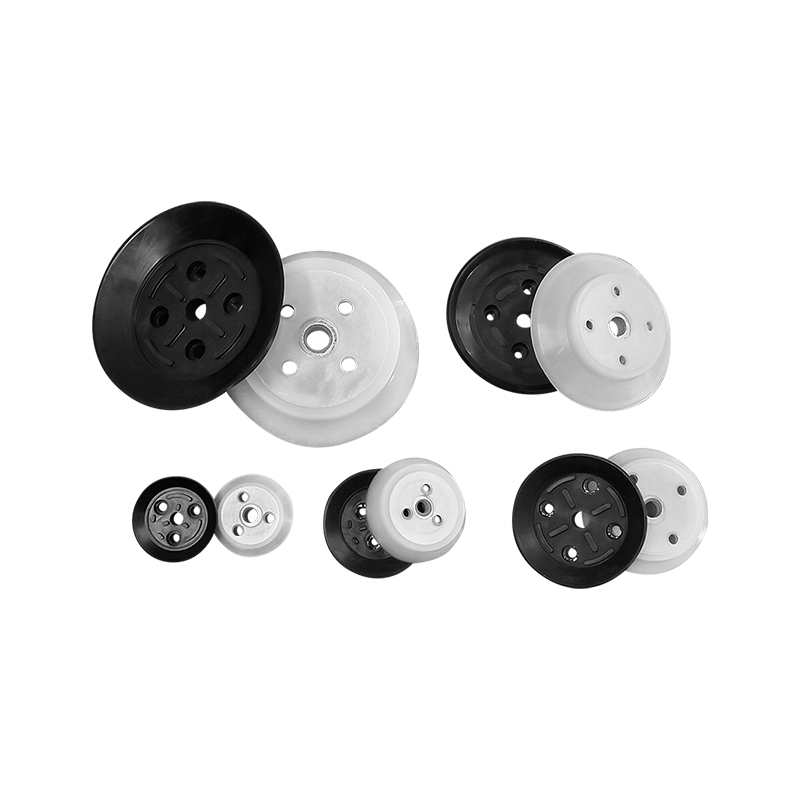

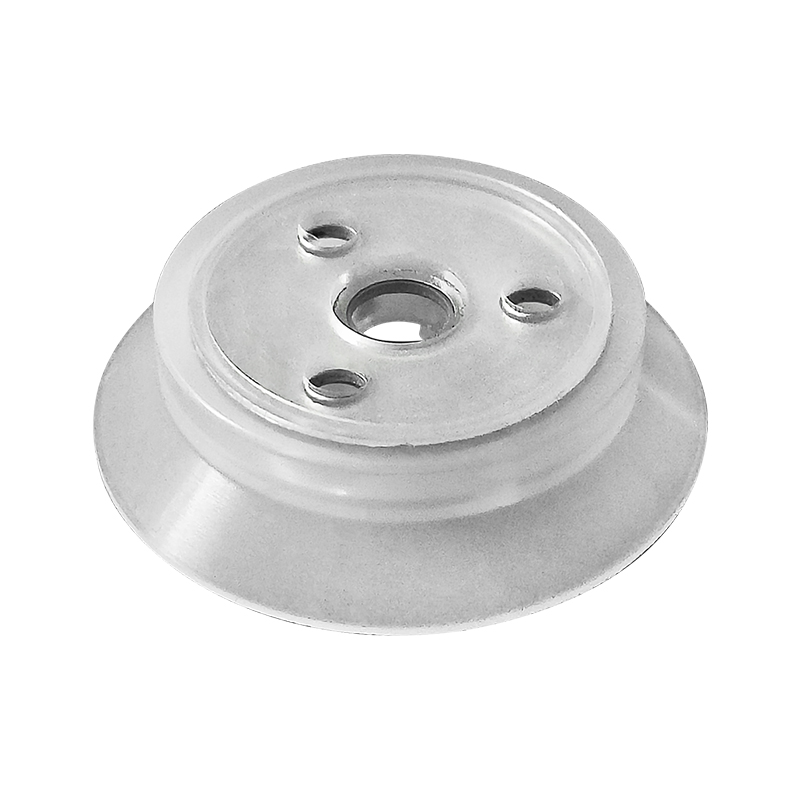

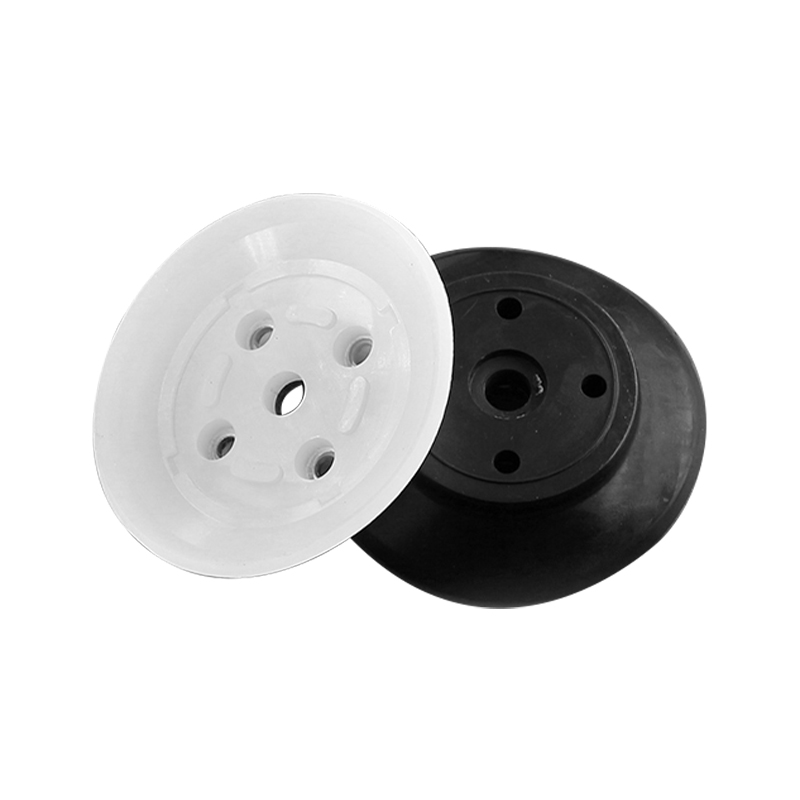

Size and material: Heavy-duty single-layer vacuum cups are available in a variety of sizes, such as ZP32HN, ZP40HN, ZP50HN, ZP63HN, ZP80HN, ZP100HN, etc., in black and white. Made of NBR material, it has good wear resistance and flexibility
Technical parameters: The maximum operating pressure is generally 1.0 MPa, suitable for most industrial automation applications
The piston speed range is 50 to 200 mm/s, providing a wide speed adjustment range

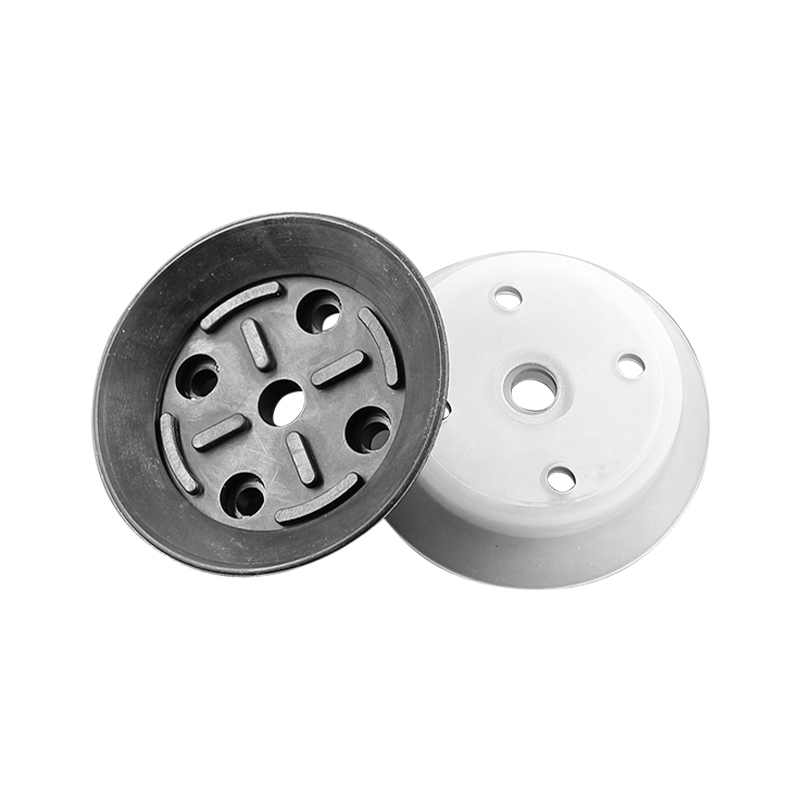

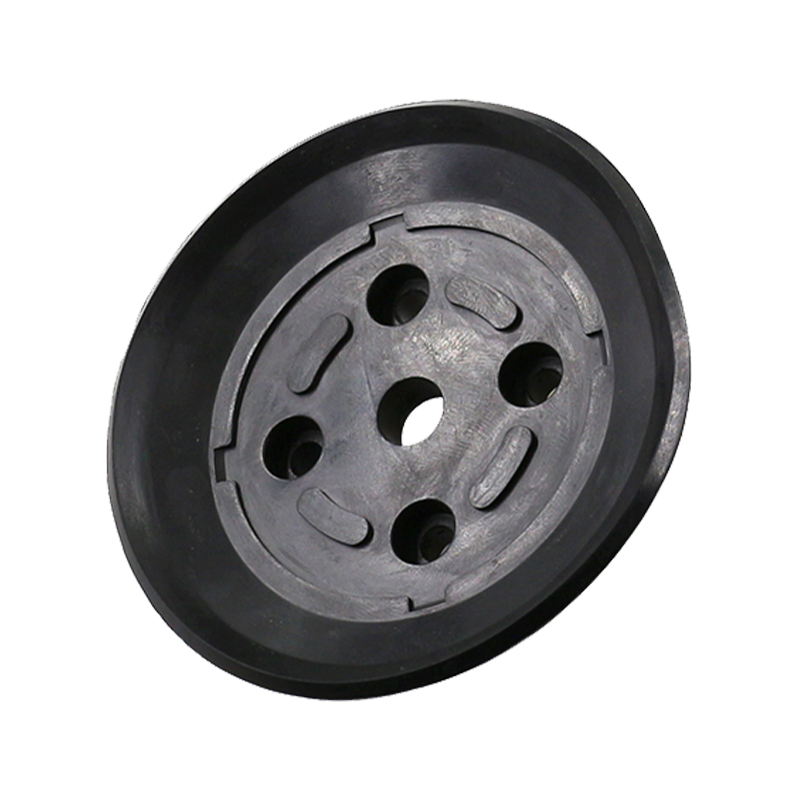

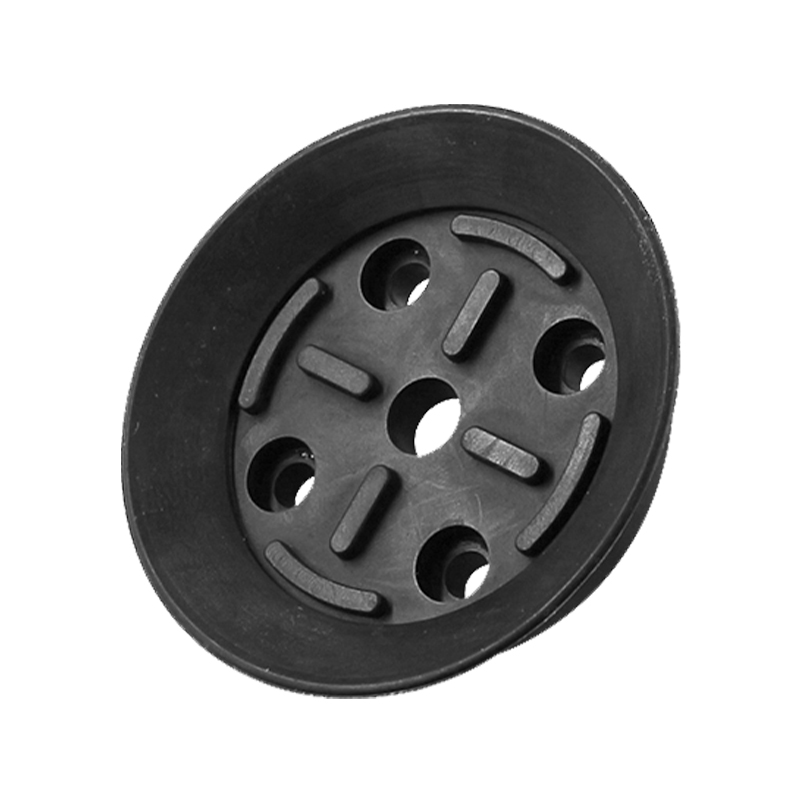

Design features: It adopts a ribbed flat design, which can improve the rigidity and load capacity of the suction cup
Application scenarios
Glass substrate handling: In LCD display/substrate handling and packaging equipment, vacuum suction cups are used to adsorb and transport glass substrates to ensure that the substrates are not damaged during the handling process
Workpiece conveying and position adjustment: During the workpiece conveying and position adjustment process, vacuum suction cups are used in conjunction with equipment such as guide rod cylinders and floating cylinders to achieve accurate handling and positioning of workpieces
Packaging industry: During the packaging process, vacuum suction cups are used to transport and position packaging materials or products to improve packaging efficiency and quality
Automobile manufacturing: During the automobile manufacturing process, heavy-duty vacuum suction cups can be used to transport and install large parts of automobiles, such as doors, roofs and windshields
Wood processing: In the woodworking and furniture manufacturing industries, heavy-duty vacuum suction cups are used to transport and process large wood boards, facilitating workers to perform cutting, grinding and processing operations
