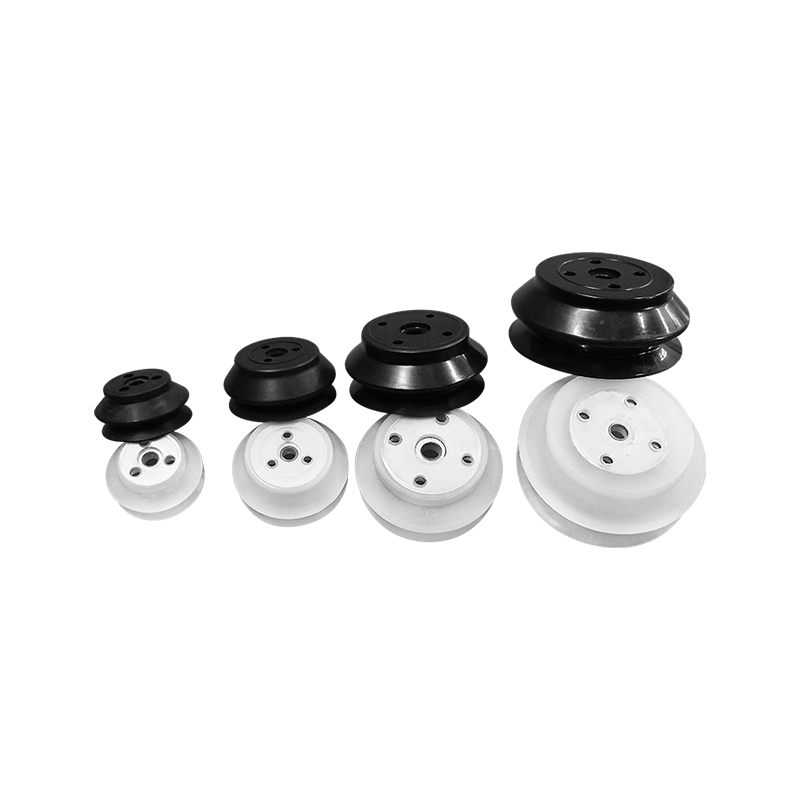

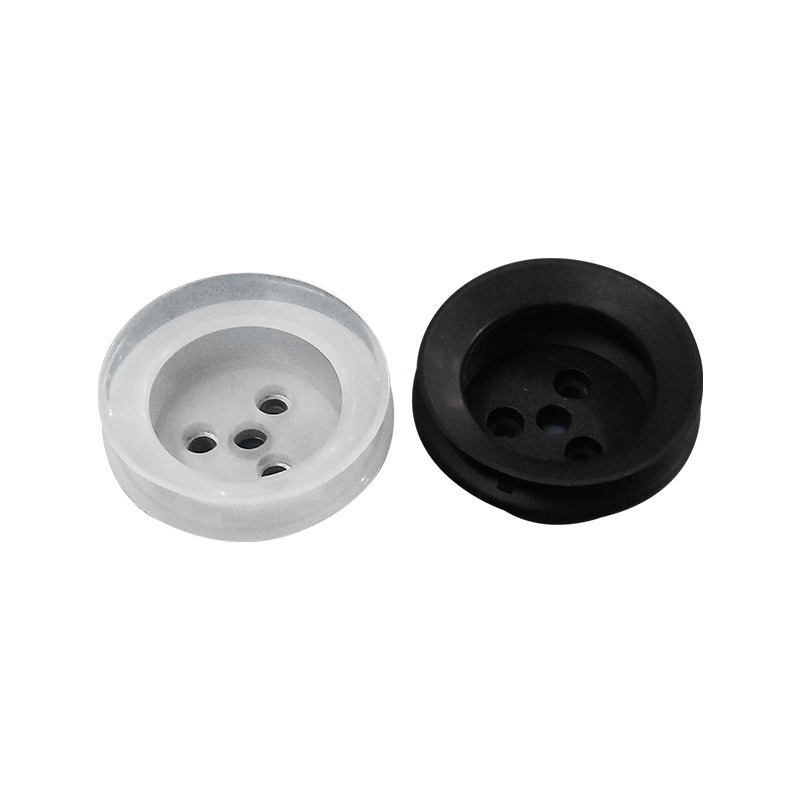

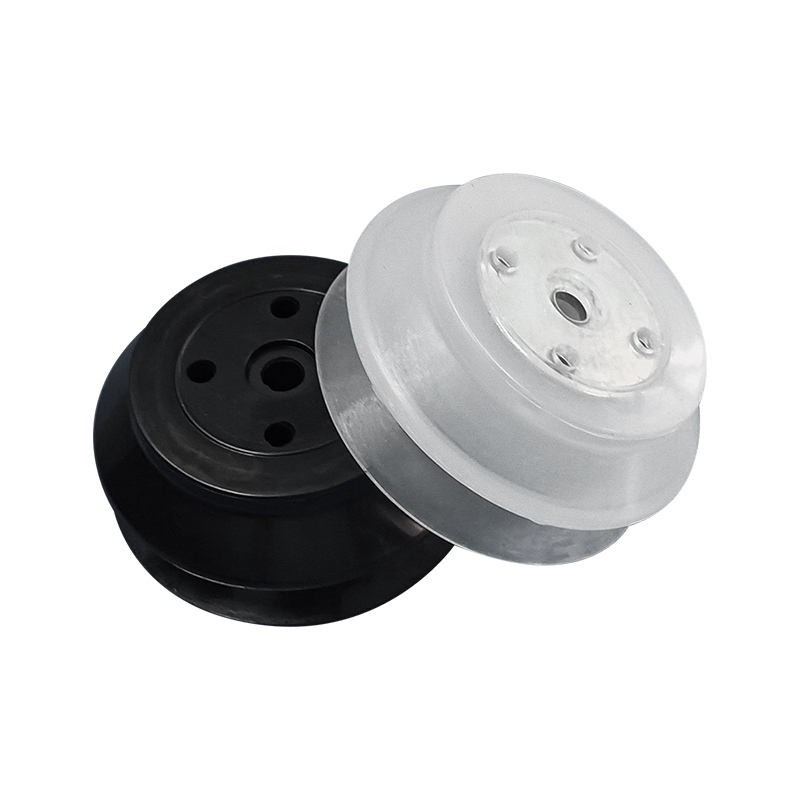

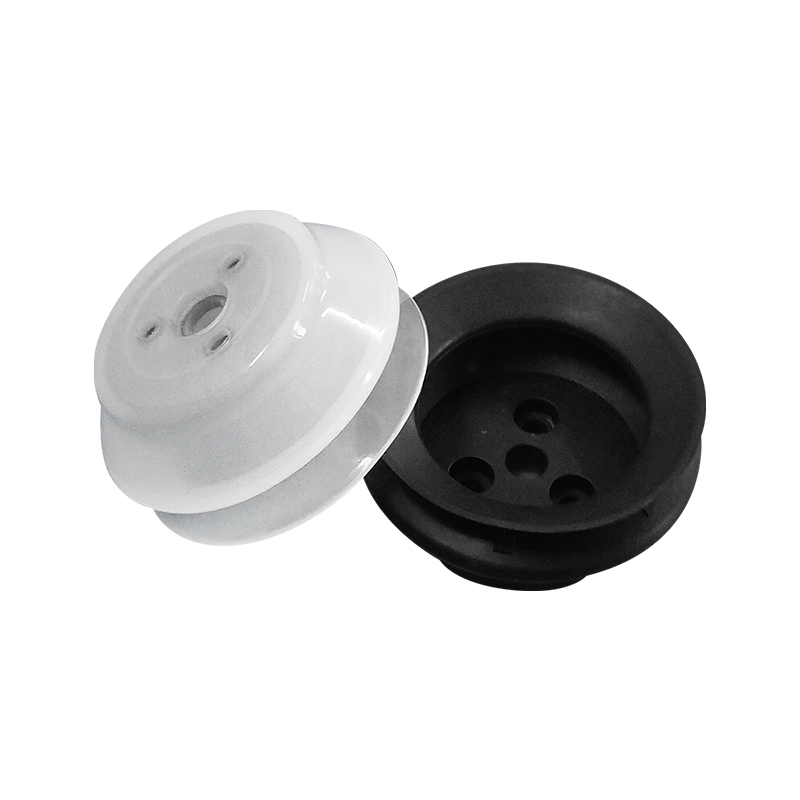

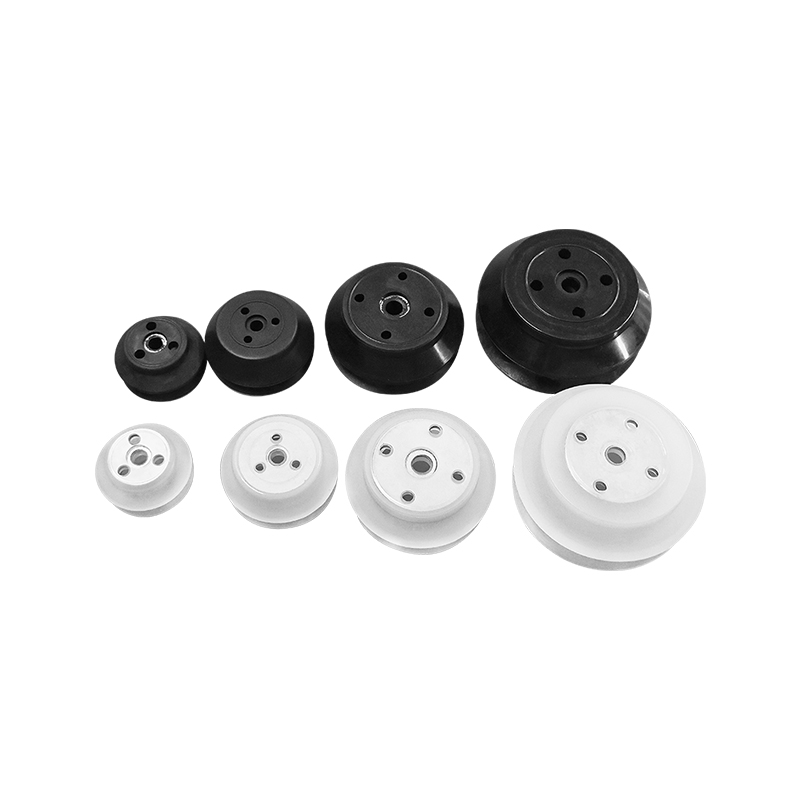

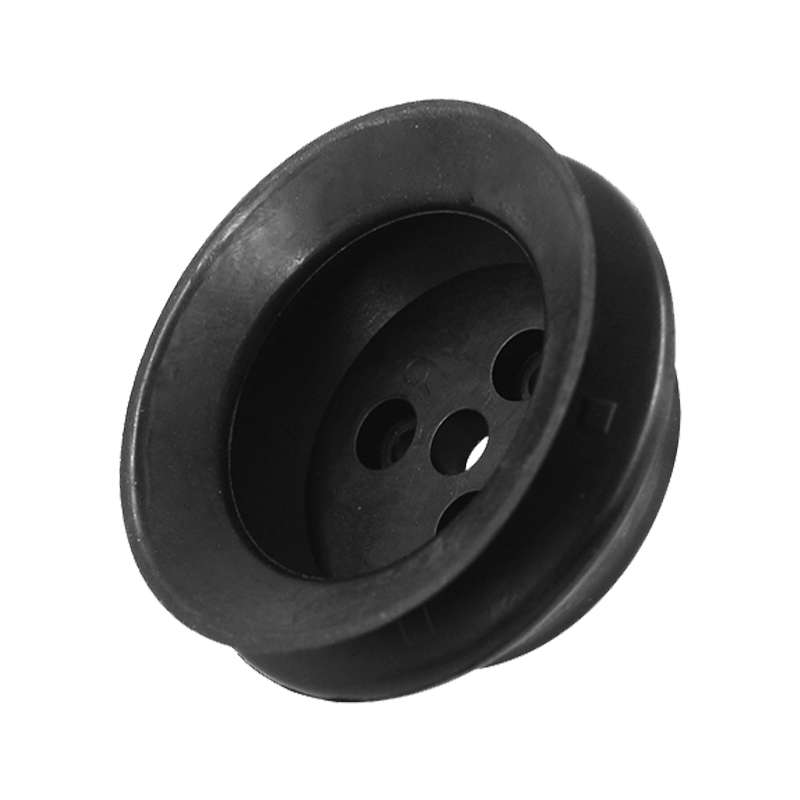

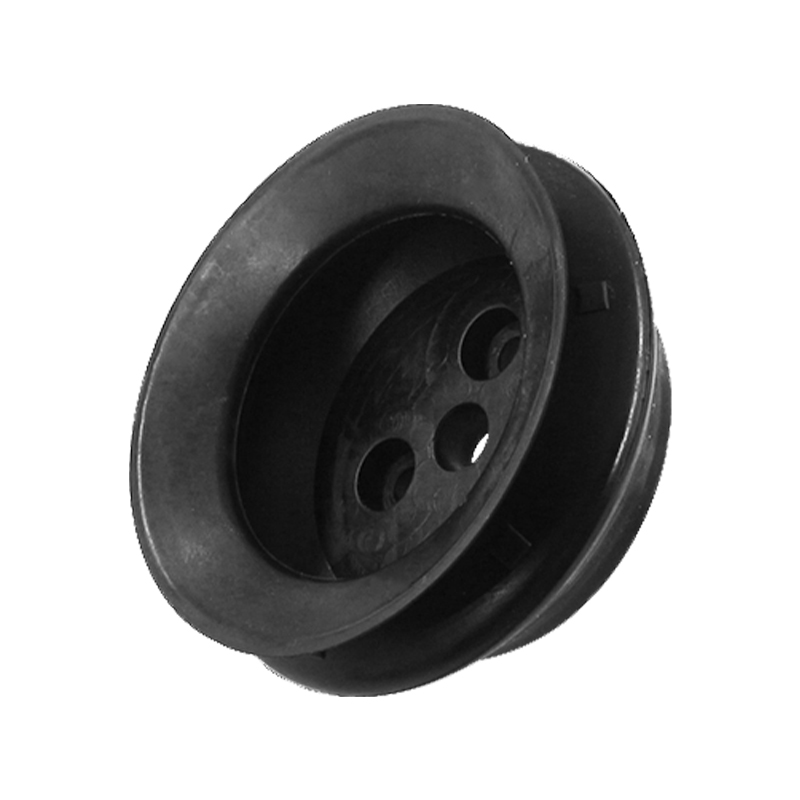

Factory Direct Sales Industrial Suction Cup Replaces Smc Vacuum Pneumatic Nozzle Zp50hbs Manipulator Heavy-Duty Silicone Rubber
YHZP32HBS
YHZP32HBN
YHZP40HBS
YHZP40HBN
YHZP50HBS
YHZP50HBN
YHZP63HBS
YHZP63HBN
YHZP80HBS
YHZP80HBN
Product information

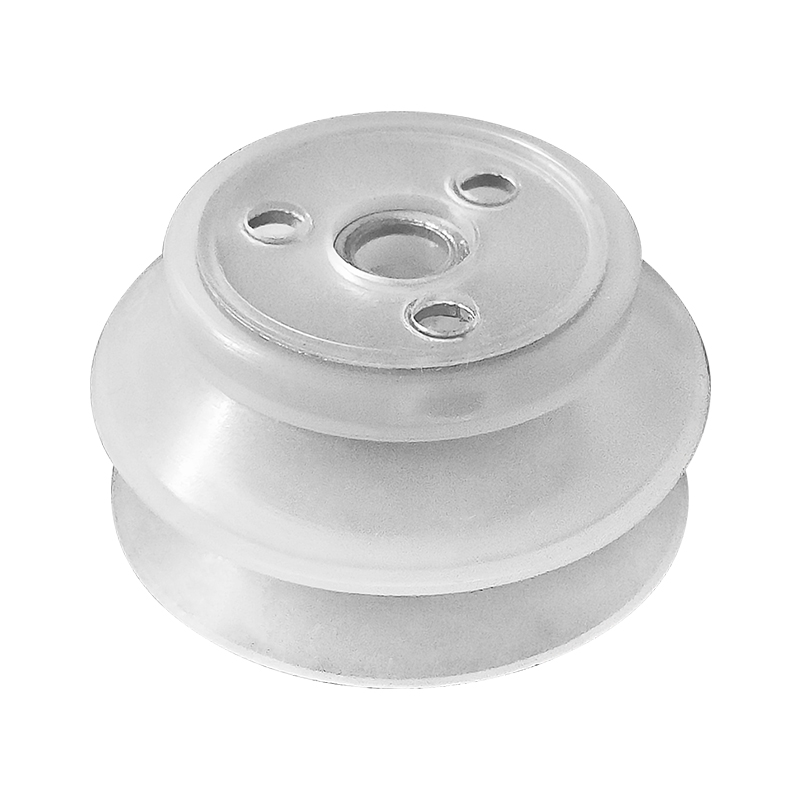

Model features: The ZP series has a variety of models, among which the ZP-HB model may have a high-rigidity accordion design, which can improve the load capacity and stability of the suction cup

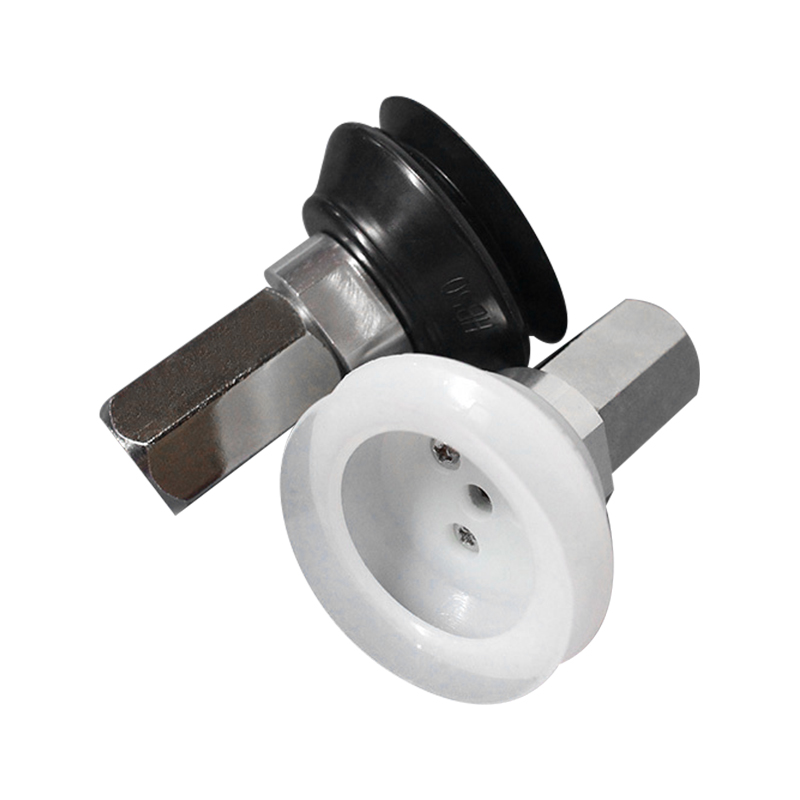

Installation connection: Provide external thread and internal thread installation connection methods, as well as a variety of vacuum installation port options such as quick-change pipe joints and barb joints
Vacuum lead-out direction: The vacuum lead-out direction is available in longitudinal and lateral directions

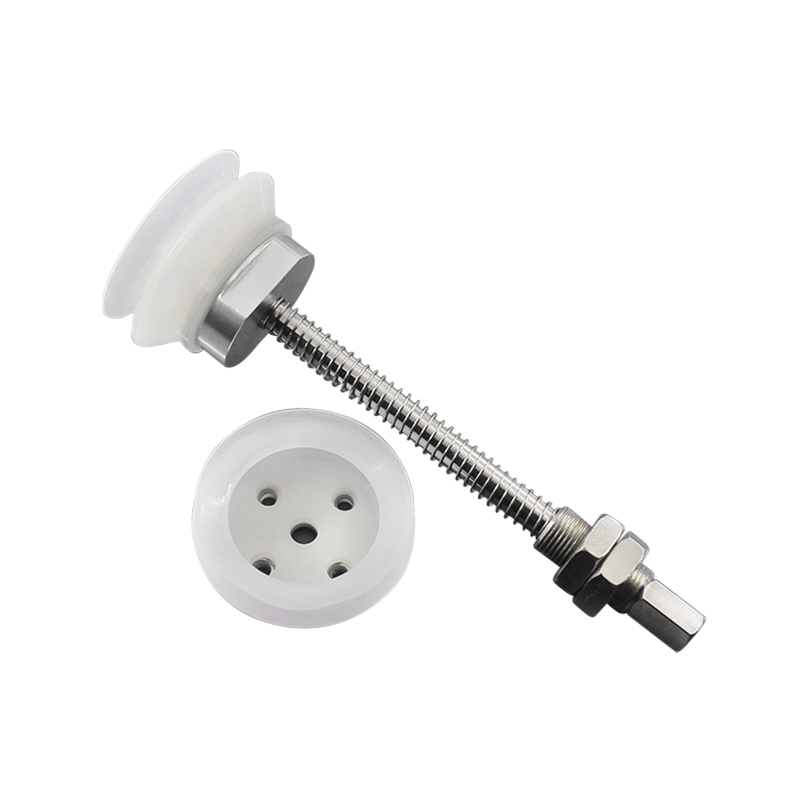

Buffer configuration: You can choose whether to have a buffer, and the buffer stroke has a variety of specifications such as 6, 10, 15, 20, 25, 30, 40, 50mm

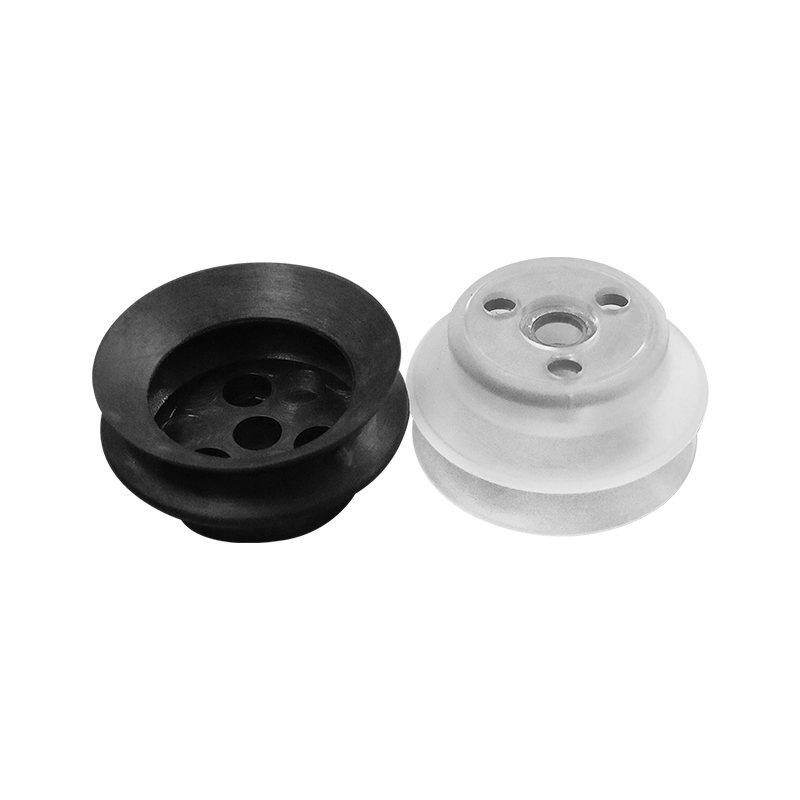

Material selection: Usually NBR material is used, which has good wear resistance and flexibility. Silicone rubber, polyurethane rubber and fluororubber are also available to meet the adsorption needs of different workpieces
Technical parameters: The maximum operating pressure is generally 1.0 MPa, which is suitable for most industrial automation applications. The piston speed range is 50 to 200 mm/s
Application scenarios
Glass substrate handling: In LCD display/substrate handling and packaging equipment, vacuum suction cups are used to absorb and transport glass substrates to ensure that the substrates are not damaged during handling
Workpiece conveying and position adjustment: During workpiece conveying and position adjustment, vacuum suction cups are used in conjunction with equipment such as guide rod cylinders and floating cylinders to achieve accurate handling and positioning of workpieces
Packaging industry: During the packaging process, vacuum suction cups are used to transport and position packaging materials or products to improve packaging efficiency and quality
Automobile manufacturing: During the automobile manufacturing process, heavy-duty vacuum suction cups can be used to transport and install large parts of automobiles, such as doors, roofs and windshields
Wood processing: In the woodworking and furniture manufacturing industries, heavy-duty vacuum suction cups are used to transport and process large wood boards, making it convenient for workers to perform cutting, grinding and processing operations
.
